Basic Info.
Model NO.
M-1506 M-1303
Network Management
Support Network Management
CPU
J1900, I3/I5/I7 Available
System
Windows
OEM
Yes
RAM
4GB, 8GB Available
Memory
64GB, 128GB/512GB Available
Certificate
CE, RoHS
Housing Material
Aluminium Alloy, Stainless/Metal Available
Grade
Industrial Grade
IP Rating
IP65
Surface Handling
No Bezel Flat Screen
Color
White/Black/Grey
Other Inputs
RS232/RS485 Multi-Inputs Optional
Installment
Desktop, Wall Mounted, Kiosk
Delivery Time
7-8 Working Days with Standard Design
OS
Windows, Android OS Available
Touch Mode
Capacitive Multi-Touch
Transport Package
K=K Standard Package
Specification
Aluminium Alloy material
Trademark
OEM/Montroincs
Origin
Shenzhen
HS Code
8471504001
Production Capacity
1000PCS/Day
Product Description
Hot Models:

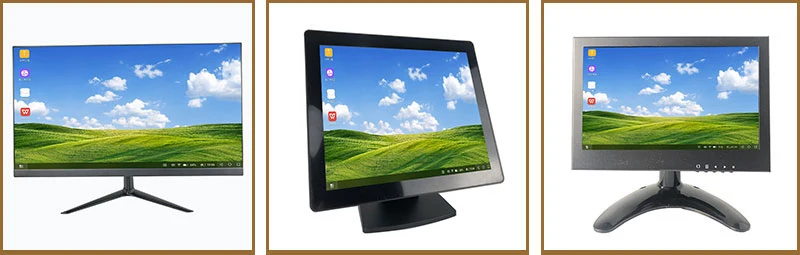

LCD LED Monitor Touch Screen Monitor CCTV Monitor

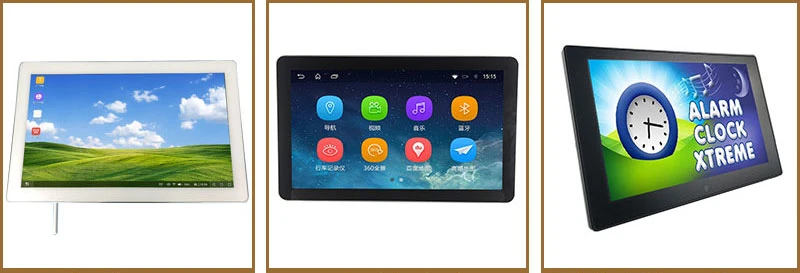

Touch All In One PC Android Display Open Frame Embedded
15.6 inch 11.6 inch dual-screen POS terminal cash register touch display ticket machine scan gun cash box
1.OEM/ODM
2.CPU:J1900/i3/i5/i7
3.RAM:4GB, 8GB available
4.Memory: 64GB, 128GB/512GB available
5. Color: White/Black/Grey
6. Delivery: 7-8 working days with standard design
7. OS: Windows, Android OS available
8. Other inputs: RS232/RS485 multi-inputs optional
9. Surface handling: No bezel flat screen, IP65
10. Housing material:Aluminium alloy, Stainless/Metal available
11. Application: Industrial kiosk/Home/Parking/Commercial/POS sytem/Banking/Restaurant
Specifications:
LCD LED Monitor Touch Screen Monitor CCTV Monitor
Touch All In One PC Android Display Open Frame Embedded 15.6 inch 11.6 inch dual-screen POS terminal cash register touch display ticket machine scan gun cash box
1.OEM/ODM
2.CPU:J1900/i3/i5/i7
3.RAM:4GB, 8GB available
4.Memory: 64GB, 128GB/512GB available
5. Color: White/Black/Grey
6. Delivery: 7-8 working days with standard design
7. OS: Windows, Android OS available
8. Other inputs: RS232/RS485 multi-inputs optional
9. Surface handling: No bezel flat screen, IP65
10. Housing material:Aluminium alloy, Stainless/Metal available
11. Application: Industrial kiosk/Home/Parking/Commercial/POS sytem/Banking/Restaurant
Specifications:
| Model | M156+M12 | ||
| Size | 15.6+11.6 Inch Windows Touch All In One PC (Metal Frame) | ||
| Screen Ratio | 16:09 | ||
| Resolution | 1920*1080 | ||
| Contract Ratro | 1900/2/2 8:01 | ||
| Response time | 5ms | ||
| Brightness | 250cd/m2 | ||
| Pixel | 0.0826*0.247mm | ||
| Display area | 344.16×193.59mm(H×V) | ||
| Viewing Angle | 178°/178° | ||
| Life | more than 50 thousand hours | ||
| Touch | Capacitive | 10 points multi-touch | |
| Smaller screen | size | 11.6" (1920*1080) | |
| PC specification | Mainboard | Intel | |
| CPU | J1900 | ||
| CPU frequency | 2.0GHz | ||
| Core figure | Four thread core for dual core | ||
| SSD | 128GB | ||
| RAM | 4GB | ||
| Sound card system | Inter Display Audio | ||
| Sound chips | Realtek ALC887 8 | ||
| OS | win7/win8/10 | ||
| Signal | Video system | PAL/NTSC/SECAM | |
| Computer | Computer line synchronous range:30~80KHZ,:50~60HZ | ||
| Support: 1920*1080 | |||
| Consumption | Voltage | AC110-240V | |
| Consumption | ≤48W | ||
| standby | <2W | ||
| Multi-Media | Multimedia stereo sound power rating | 10W×2, Max:15W×2 | |
| Signal output | VGA | ×1 | |
| USB 2.0 | x 2 | ||
| USB3.0 | x 2 | ||
| MIC | ×1 | ||
| COM | x 1 | ||
| RJ45 | ×1 | ||
| Power | ×1 | ||
| Environment | Work Temperature:0- 50 ºC | storage temperature:-20- 60 ºC | |
| work humidity:10%~85% | |||
| Whole set dimension | Dimension | 403.2x352.2x48.9mm | |
| Frame material | Material aluminium alloy wire drawing, cold plate, on the back surface of the lacquer that bake (black) | ||
| Package dimension | Box dimension | 560*520*180mm | |
| Design weight | Machine weight the machine without the packing weight 8kg | ||
| Certificates | standard type | CE, ROHS, EN60601 | |
| OTHERS | MENU | MENU,POWER,SELECT,CH+,CH-,UP,DOWN | |
